Back to Skin SDK Skin SDK: the Default Icons
Below is a full explanation of each VirtualDJ default Icon and the available sysicon names.

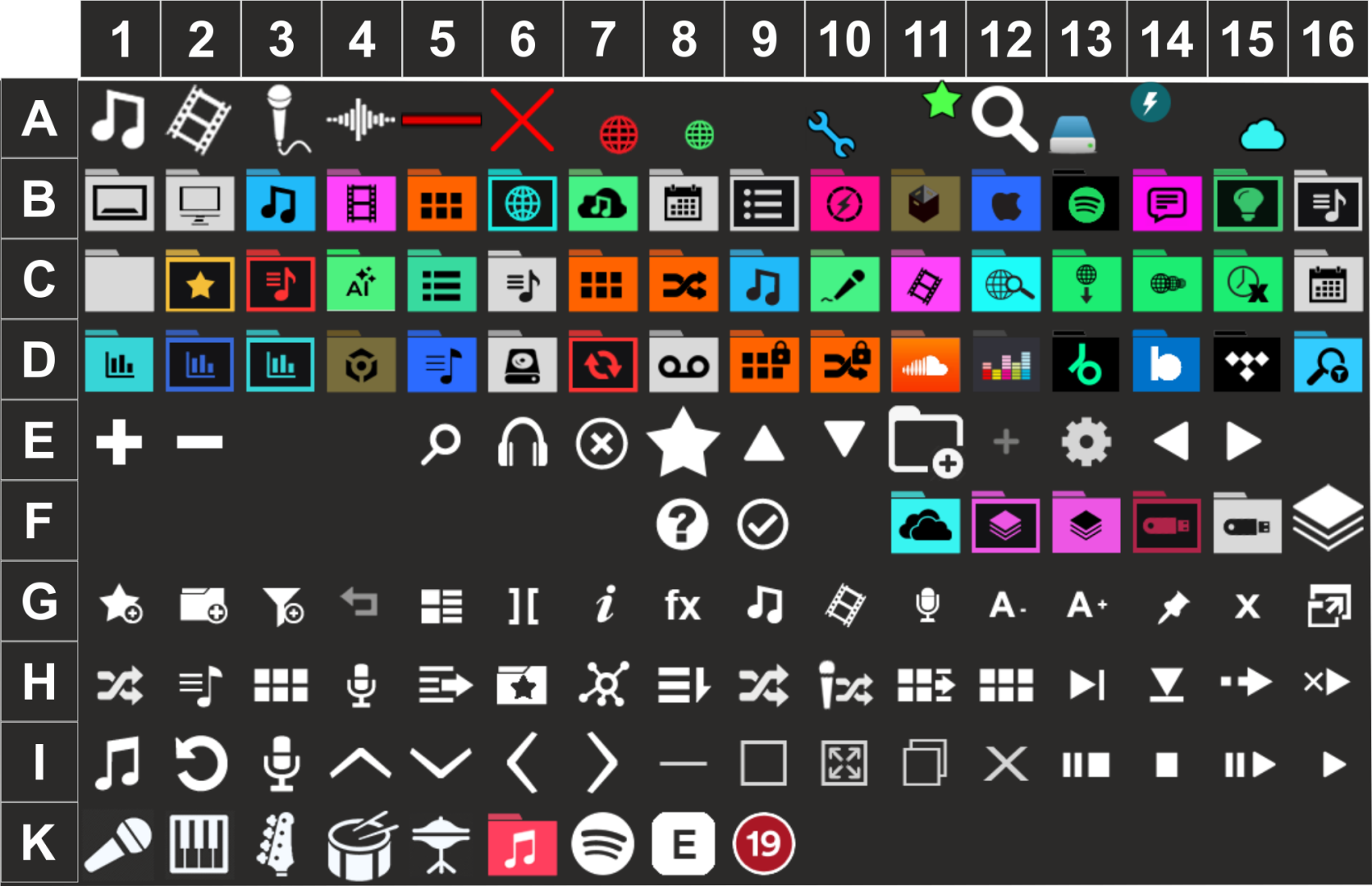

The default Icons of VirtualDJ can be downloaded from ....
Browser Icons Download - right-click and save as
Default VirtualDJ Icons | Row/Col | Description | syicon Action |
|---|
| A1 | Audio File | N/A |
| A2 | Video File | N/A |
| A3 | Karaoke File | N/A |
| A4 | Sample File | N/A |
| A5 | Played Flag overlay | N/A |
| A6 | Not present (missing) File | N/A |
| A7 | Content Unlimited File | N/A |
| A8 | Netsearch File | N/A |
| A9 | Offline Cached File | N/A |
| A10 | VDJ Edit File | N/A |
| A11 | New (in database) File | N/A |
| A12 | Online Search Result | N/A |
| A13 | Online Search Local Result | N/A |
| A14 | Stems Pre-computed File | N/A |
| A15 | CloudDrive File | N/A |
| A16 | N/A | N/A |
| B1 | Folders List - Desktop | N/A |
| B2 | Folders List - My Computer | N/A |
| B3 | Folders List - My Music folder | N/A |
| B4 | Folders List - My Videos folder | N/A |
| B5 | Folders List - Sampler Folder | N/A |
| B6 | Folders List - Online Music folder | N/A |
| B7 | Folders List - Cloud Lists folder | N/A |
| B8 | Folders List - History folder | N/A |
| B9 | Folders List - Lists | N/A |
| B10 | Folders List - Genius DJ | N/A |
| B11 | Folders List - Serato Crates folder | N/A |
| B12 | Folders List - iTunes folder | N/A |
| B13 | Folders List - Shazam (deprecated) | N/A |
| B14 | Folders List - Ask The DJ | N/A |
| B15 | Folders List - Ideas | N/A |
| B16 | Folders List - Playlists folder | N/A |
| C1 | Folders List - Files folder | N/A |
| C2 | Folders List - Favorite folder | N/A |
| C3 | Folders List - Virtual folder | N/A |
| C4 | Folders List - Filters folder | N/A |
| C5 | Folders List - Filters sub-folder (group) | N/A |
| C6 | Folders List - Playlists folder | N/A |
| C7 | Folders List - Sampler Bank | N/A |
| C8 | Folders List - Loaded Sampler Bank | N/A |
| C9 | Folders List - CU Audio folder | N/A |
| C10 | Folders List - CU Karaoke folder | N/A |
| C11 | Folders List - CU Video folder | N/A |
| C12 | Folders List - CU Plugin | N/A |
| C13 | Folders List - CU Cache (offline) folder | N/A |
| C14 | Folders List - CU Downloads | N/A |
| C15 | Folders List - CU Expired | N/A |
| C16 | Folders List - History Date folder | N/A |
| D1 | Folders List - Cloud User (deprecated) | N/A |
| D2 | Folders List - Cloud List | N/A |
| D3 | Folders List - Private Cloud List (deprecated) | N/A |
| D4 | Folders List - Serato Crate | N/A |
| D5 | Folders List - ITunes Playlist | N/A |
| D6 | Folders List - Hard Drive | N/A |
| D7 | Folders List - CD Drive (deprecated) | N/A |
| D8 | Folders List - Sampler Recordings Folder | N/A |
| D9 | Folders List -Samples Folder | N/A |
| D10 | Folders List - Samples Set (zip) | N/A |
| D11 | Folders List - Soundcloud | N/A |
| D12 | Folders List - Deezer Folder | N/A |
| D13 | Folders List - Beatport folder | N/A |
| D14 | Folders List - Beatsource folder | N/A |
| D15 | Folders List - Tidal folder | N/A |
| D16 | Folders List - Filter Folder | N/A |
| E1 | Browser - Plus (expand sub-folders) | N/A |
| E2 | Browser - Minus (collapse sub-folders) | N/A |
| E3 | N/A | N/A |
| E4 | N/A | N/A |
| E5 | Browser - Search Icon | search |
| E6 | Browser - Prelisten/Headphones Icon | headphones |
| E7 | Browser - Clear Edit Icon | N/A |
| E8 | Browser - Rating (star) Icon | N/A |
| E9 | Browser - Sort Down | arrowup |
| E10 | Browser - Sort Up | arrowdown |
| E11 | Browser - Sidelist Background | N/A |
| E12 | Browser - Add Shortcut | N/A |
| E13 | Config (Settings) | settings |
| E14 | Left Arrow | arrowleft | sampler_bank -1 | sampler_mode -1 |
| E15 | Right Arrow | arrowright | sampler_bank +1 | sampler_mode +1 |
| E16 | N/A | N/A |
| F1 to F7 | N/A | N/A |
| F8 | Info/Question icon | browser_options 'le' |
| F9 | Check icon | N/A |
| F10 | N/A | N/A |
| F11 | CloudDrive folder | N/A |
| F12 | Stems folder | N/A |
| F13 | Stems Prepared folder | N/A |
F14 | CDJ Export Root folder | N/A | F15 | CDJ Export Drive | N/A | F16 | Cover Stems | N/A |
| G1 | Browser button - Add Favorite Folder | add_favoritefolder |
| G2 | Browser button - Add Virtual Folder | add_virtualfolder |
| G3 | Browser button - Add Filter Folder | add_filterfolder |
| G4 | Browser button - Previous folder (Back) | goto_last_folder |
| G5 | Browser button - Grid View | grid_view |
| G6 | Browser button - Show Side View window | show_splitpanel 'sideview' |
| G7 | Browser button - Show Info Browser window | show_splitpanel 'info' |
| G8 | Browser button - Show FX Browser window | show_splitpanel 'effects' |
| G9 | Browser button - Show/Hide Audio files (Filter) | view_options 'showmusic' |
| G10 | Browser button - Show/Hide Video files (Filter) | view_options 'showvideo' |
| G11 | Browser button - Show/Hide Karaoke files (Filter) | view_options 'showkaraoke' |
| G12 | Browser button - Browser Font reduce | font_size - |
| G13 | Browser button - Browser Font increase | font_size + |
| G14 | Browser button - Pin (Dock) FX GUI | effect_dock_gui |
| G15 | Browser button - Close FX GUI | effect_show_gui |
| G16 | Browser button - Browser Zoom View | browser_zoom |
| H1 | Browser button - Sideview Automix | sideview 'automix' |
| H2 | Browser button - Sideview Sidelist | sideview 'sidelist' |
| H3 | Browser button - Sideview Sampler | sideview 'sampler' |
| H4 | Browser button - Sideview Karaoke | sideview 'karaoke' |
| H5 | Browser button - Sideview Clone (Shortcuts) | sideview 'clone' |
| H6 | Browser button - Sideview Custom | N/A |
| H7 | Browser button - Sideview Remixes | sideview 'remixes' |
| H8 | Browser button - Quick Filter | quick_filter |
| H9 | Browser button - Automix On/Off | automix |
| H10 | Browser button - Karaoke On/Off | karaoke |
| H11 | Browser button - Sampler Bank | sampler_bank |
| H12 | Browser button - Sampler Triger pad view | sideview_triggerpad |
| H13 | Browser button - Sampler trigger mode On/Off | sampler_mode 'on/off' or sampler_mode |
| H14 | Browser button - Sampler trigger mode Hold | sampler_mode 'hold' or sampler_mode |
| H15 | Browser button - Sampler trigger mode Stutter | sampler_mode 'stutter' or sampler_mode |
| H16 | Browser button - Sampler trigger mode Unmute | sampler_mode 'unmute' or sampler_mode |
| I 1 | Sampler Drop Sample | sampler_drop |
| I 2 | Sampler Loop Sample | sampler_loop |
| I 3 | Sampler Mic Record Sample | sampler_mic |
| I 4 | Chevron-Arrow Up | chevronup |
| I 5 | Chevron-Arrow Down | chevrondown |
| I 6 | Chevron-Arrow Left | chevronleft |
| I 7 | Chevron-Arrow Right | chevronright |
| I 8 | Minimize | minimize |
| I 9 | Maximize | maximize |
| I 10 | Fullscreen Maximize | maximize |
| I 11 | Windowed Maximize | maximize |
| I 12 | Close | close |
| I 13 | Pause-Stop | N/A |
| I 14 | Stop | stop | stop_button |
| I 15 | Play-Pause | play_pause |
| I 16 | Play-Stutter | play |
