Pads
Pads (35) offer 10 different modes, depending on the PAD MODE SEL buttons (36). Press the same PAD MODE button again to access the additional mode (the LED will blink as an indication).
Each time a mode is selected, a Page will be selected and displayed on the Pads section of the default VirtualDJ skin
Use the PARAMETER < > buttons (38) to adjust the Parameter 1 (if available) of the selected Pads page
Hold SHIFT down and then use the PARAMETER < > buttons (38) to adjust the Parameter 2 (if available) of the selected Pads page
HotCues mode
Press the CUES mode button to set the PADs to HotCue mode. The Hotues page will be then selected and displayed on the Pads section of the VirtualDJ skin
Each one of the 8 pads assigns a Hot Cue Point (1 to 8) or returns the track to that Hot Cue Point.
When a Hot Cue Button is unlit, you can assign a Hot Cue Point by pressing it at the desired point in your track. Once it is assigned, the Hot Cue Button will light up.
Hold SHIFT and then press any of the pads to delete its assigned Hot Cue Point.
Use the PARAMETER < and > buttons (38) to jump to the next or previous HotCue.
Hold SHIFT down and then use the PARAMETER <> buttons to jump the track forward/backwards by 1 beat
Note: By default Hotcues will get the color of the deck (blue for deck 1, red for deck 2, green for deck 3 and orange for deck 4). A different coloring behavior can be offered via the NonColoredPOI setting (from VirtualDJ Settings OPTIONS tab).
Cue - Loop mode
Press the CUES Mode button twice (or once if the selected mode was HotCues) to set the Pads to HotCue Loop mode (the led of the CUES button will blink). The CueLoop page will be then displayed on the Pads section of VirtualDJ skin
Each one of the 8 Pads assigns a Hot Cue Point or returns the track to that Hot Cue Point, but in both cases, it also triggers a momentary or toggle Loop depending on the selected mode.
The currently selected length will be used for the triggered Loop
Hold SHIFT down and then press a pad to jump to the Hot Cue Point but leave the Loop enabled.
Use the PARAMETER < and > buttons (38) to half and double the size of the applied Loop .
Hold SHIFT down and then use the PARAMETER < > buttons to select the On/Off (toggle) or Hold ( Loop will be enabled while the Pad is pressed) mode
Auto Loop mode
Press the AUTO mode button to set the Pads to Auto Loop mode. The Loop page will be then selected and displayed in the Pads section of the default VirtualDJ skins.
In this mode, each one of the 8 Pads triggers an Auto- Loop of a different size in beats, depending on the selected bank/page from 1/32 to 128 beats
Use the PARAMETER < and > (38) buttons to select a different bank/page with the desired Loop sizes.
Hold SHIFT down and then use the PARAMETER buttons to select a trigger mode for the Loops (On/Off, Hold or Roll)
Each time a Loop Size Banks/page is selected, its assigned quick Loop values will be displayed on the LCD screen. Due to a firmware limitation, some very small or very large Loop sizes cannot be displayed.
Loop Roll mode
While the Auto Loop mode is selected, press the same AUTO mode button again to set the PADs to Loop Roll mode (led will blink). The Loop Roll page will be then selected and displayed in the Pads section of the default skin of VirtualDJ
Each one of the 8 Pad triggers a momentary Loop Roll (while pressed) of a different length in beats as per the images above.
In this mode the PARAMETER (38) buttons have no functionality.
The LCD screen displays the sizes of the assigned Loop Rolls for each pad and the size of the triggered Loop Roll as well on the Loop Box.
Manual Loop mode
Press the Loop mode button to set the Pads to Manual Loop mode. The Manual Loop page will be then selected and displayed in the Pads section of the VirtualDJ default skin.
Each one of the 8 pad offers a different Loop function.
Use Pads 1 and 2 to set a Loop Entry (In) and a Loop Exit (Out) point for manual looping.
Use Pad 3 to turn off the Loop (if enabled) or trigger a Loop of the selected size in beats
Use Pad 4 to repeat the last triggered Loop (reloop)
Use Pads 5 and 6 to half/double the size of the Loop .
Use Pads 7 and 8 to move the Loop (if enabled) forward/backwards by 1 beat
While SHIFT is pressed use ..
Pad 1 to set the Jogwheel to Loop In Adjust mode and use the Jogwheel to fine adjust the Loop In position
Pad 2 to set the Jogwheel to Loop Out Adjust mode and use the Jogwheel to fine adjust the Loop Out position
Pad 3 to set the Jogwheel to Loop Move Adjust mode and use the Jogwheel to fine move the Loop through the track.
Pad 4 to enable/disable Smart Loop . When Smart Loop is enabled (default status), using Loop In and Loop Out buttons to trigger a Manual Loop , will result of a seamless Loop (track will stay on beat)
Pad 5 to enable/disable Loop Back mode. When Loop Back mode is enabled, and an Auto Loop is enabled, the current track's position will be considered as the Loop Out (Exit) point of the Loop and the passed part of the track will be looped.
Pad 6 to enable/disable Quantize Loop mode. When enabled, the Loop In point of a Loop will be snapped to the nearest beat
Pad 7 and 8 to move the Loop (if enabled) forward/backwards by the amount of the size of the Loop .
Use the PARAMETER <> buttons to half/double the size of the Loop
Saved Loops mode
Press the Loop Mode button twice (or once if the selected mode was Manual Loop ) to set the Pads to Saved Loops mode (the led of the Loop button will blink). The Saved Loops page will be then selected and displayed in the Pads section of the VirtualDJ skins.
This mode offers the ability to save up to 8 Loops to individual Loop Slots.
Press any Pad to save the current Loop at the current track’s position (of the selected size in beats) to the relative slot. Hold the same Pad down for more than 1 second to delete the Saved Loop .
When a Loop slot is saved, press the corresponding Pad to load (prepare) the Saved Loop .
If the track’s position is before the Saved Loop point, the Loop will be enabled but the track will not jump to that position (Prepare status). Use the same Pad to disable the Loop .
Hold SHIFT down and then press one of the lower Pads to load the Saved Loop , but also jump to that position.
Use the PARAMETER < and > (38) buttons to half and double the size of the triggered Loop .
Hold SHIFT down and then use the PARAMETER buttons to move the Loop forward/backwards by 1 beat
Sampler mode
Press the SAMPLER mode button to set the PADs to Sampler mode. The Sampler Page will be then selected and displayed in the Pads section of the VirtualDJ default skins
Each one of the 8 pads triggers a sample (1 to 8) from the selected Sampler Bank of VirtualDJ.
The leds of the Pads will automatically get the assigned color of each sample (dark when off, bright when playing).
Press the pads to trigger a sample. Depending on the selected trigger mode, use SHIFT and the same pads to stop the sample.
Use the PARAMETER < and > buttons (38) to select the previous and next Sampler Bank.
Hold SHIFT down and then use the same PARAMETERS buttons to select the previous/next Trigger Pad mode (on/off, hold, stutter, and unmute)
Hold SHIFT down and then press the SAMPLER mode button to start/stop recording the deck to a new Sample (led will blink fast while recording).
Sampler Velocity mode
While the Sampler mode is selected, press and hold down the same SAMPLER mode button for more than 1 second to to enable/disable Sampler Velocity mode (led will blink fast).
When enabled, each one of the 8 pads triggers a sample (1 to 8) from the selected Sampler Bank of VirtualDJ, with the difference that the Output Volume of each sample is determined by the strength the Pad was initially pressed.
Tip: To return all samples to their maximum values after the Velocity mode is used, select the next or previous available bank and then select the current again.
Key - HotCue mode
While the Sampler mode is selected, press the SAMPLER mode button again to set the PADs to Key - Hotcue mode (led will blink). The KeyCue Page will be then selected and displayed in the Pads section of the VirtualDJ default skins
In this mode, the Pads trigger a selected Hotcue point (or the Temporary Cue if none selected or not available) at a selected Key semitone (from -7 to +7).
8 different pages/banks are offered with various semitone values to use and a 0 value (reset key to tis original value) is always offered in all pages.
Hold SHIFT and then select a Hotcue for the Key pads to trigger. Each time a Pad is pressed, the track will jump to that Hotcue point and will also alter the Key of the track to the value designated by it assigned value.
Use PARAMETER buttons <> to adjust the Key of the track without trigger a Hotcue.
Hold SHIFT and then use the PARAMETER buttons to select a different page/bank with different key semitone values.
Slicer mode
Press the Slicer mode button to set the PADs to Slicer mode.The Slicer Page will be then selected and displayed in the Pads section of VirtualDJ skin.
The eight pads represent eight sequential beats/Slices in the Beat Grid. The playing Slice is represented by the currently green lit pad. The green light will "move through the pads" as it progresses through each eight-Slice phrase. Press a pad to repeat that Slice (hold it down if you want to keep looping it). Once the Pad is released the track will continue to play from the position it would have been if the pad was never pressed.
Hold SHIFT button down and then use the same Pads to use the Slicer in Hold mode. In this mode, the slices are memorized (using the last triggered ones)
Use the PARAMETER < and > buttons (38) to adjust the length of the Loop applied to the slice. Press SHIFT and then use the same PARAMETERS < and > buttons to adjust the step of the Slices.
Beatjump mode
While the Slicer mode is selected, press the same Slicer mode button again to set the PADs to Beat Jump mode (led will blink). The BeatJump page will be then selected and displayed on the Pads section of the VirtualDJ skin
In this mode, each one of the Pads will jump the track backwards/forward by the amount of beats depending on the selected page/bank (from 1/8 beats to 32 bars)
Use the PARAMETER < > buttons to select a different bank/page with the desired size of beat jumps
NV Browser mode
Press the Slicer mode button for more than 1 second to set the PADs to NV Browser mode. The special NV Browser page will be then selected and displayed on the Pads section of the VirtualDJ skin

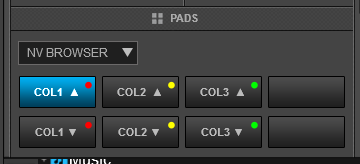

This special page (available only when the Numark NV is connected) will provide the ability to sort Columns 1, 2 and 3 alphabetically in ascending on descending order, depending on the selected field of each Column.
More NV Browser settings can be found in VirtualDJ Settings->OPTIONS tab ->CONTROLLER sub-category to adjust the displayed Browser columns on the LCD screens. The selections are saved across sessions and only apply to the Browser view of the NV Displays and not the Browser of VirtualDJ.
Use the BrowserColumn1 setting to display Title or Title (Remix) at the 1st column of the Files Browser view on the LCD screens of the NV
Use the BrowserColumn2 setting to display Artist, Remix or Genre for the 2nd Column of the Files Browser view
Use the BrowserColumn3 setting to display BPM, Harmonic and Key Difference for the 3rd Column of the Files Browser view
When the BrowserColors setting is set to Track Colors, the Tracks in NV Browser will get their defined color or white if not. If set to Played Status the Tracks will get the green color if already played and white if not.
