Kontrol S5


Native Instruments - Kontrol S5 - Layout

Effekte

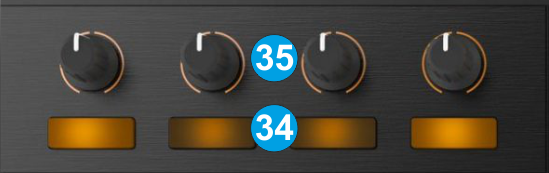

  1. FX ON : Enable/disable the selected Effect on FX Slot 1 to 4.
    Hold SHIFT and then press any of these 4 buttons to enable the FX Select view on the S5 screen.

    When in FX Select view, hold SHIFT down and then use these buttons to select/highlight the FX Slot in order to select an Effect for it.
    The FX scrolling and selection is performed with the BROWSE Encoder [20].
    When FX selection is done, hold SHIFT and then press the highlighted FX-ON button to return to the Decks view.

    When in Browser view, use these buttons to Sort the selected Browser List per Artist, Title , BPM and Key respectively.

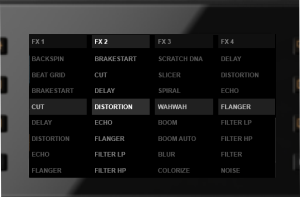

    S5 Display - FX Select view


  2. FX KNOB : Adjust the 1st Parameter of the selected Effects of FX Slots 1 to 4.
    Hold SHIFT down and then use these knobs to adjust the 2nd Parameter of the selected Effects of FX Slots 1 to 4.
    These knobs are touch capacitive and will offer the FX Parameter overlay on the Display, as long as any of those is touched.

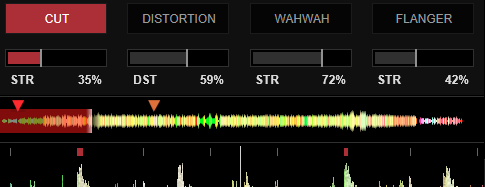

    S5 Display - FX Parameter overlay


Display
