Pioneer DJ - XDJ-XZ

Setup


Drivers


Drivers (for both Windows and Mac OSX): Install the latest drivers from https://www.pioneerdj.com/en/support/software/all-in-one-system/xdj-xz/#drivers

VirtualDJ Setup


Download and install VirtualDJ from https://www.virtualdj.com/download/index.html (in case you have not done already)

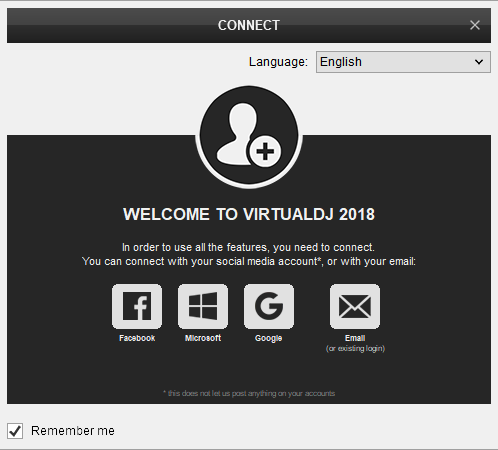

Once VirtualDJ is launched, a Connect Window will appear to login with your virtualdj.com account credentials.

A Pro Infinity or a Pro Subscription License is required to fully use the Pioneer XDJ-XZ Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.

http://www.virtualdj.com/buy/index.html

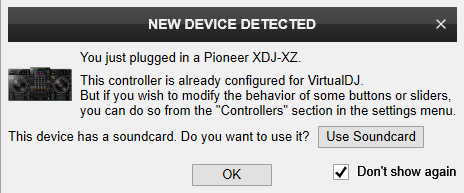

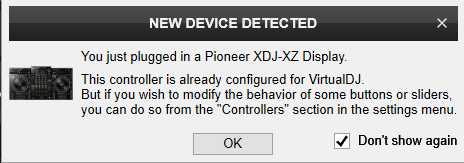

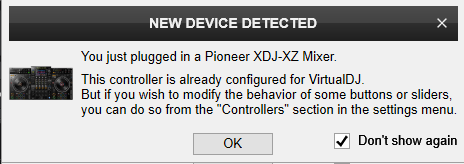

A detection windows will appear right after, verifying proper connection. Have your speakers connected to the rear-panel of the XDJ-XZ and click on the XDJ-XZ button for VirtualDJ to apply the pre-defined audio setup with the built-in sound card of the XDJ-XZ You can still change that from Settings->AUDIO tab.


Click to OK

PC MODE


To control VirtualDJ Decks with the XDJ-XZ :
  1. Press the LINK button at the left side of the XDJ-XZ Display
  2. Press the LOAD 1 button at the right side of the XDJ-XZ Display
  3. Press the LOAD 2 button at the right side of the XDJ-XZ Display



The unit is now ready to operate. with VirtualDJ

MIDI Operation

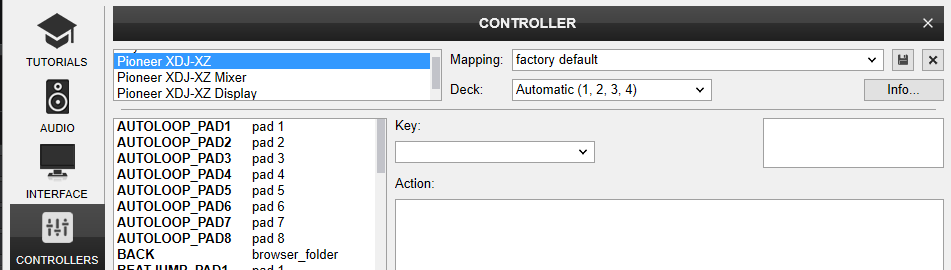

The unit should be visible in the MAPPING tab of Config as 3 separate units (the main unit , the Mixer and an additional one for the Display) and the “factory default” available/selected from the Mappings drop-down list for all units. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.



Find more details at https://www.virtualdj.com/wiki/VDJ8script.html


AUDIO Setup


The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that.



Alternative audio configurations can be applied See Advanced Setup

For further software settings please refer to the User Guides of VirtualDJ.
https://www.virtualdj.com/manuals/virtualdj8/index.html

Refer to the manual of the unit for further features-settings. at... https://www.pioneerdj.com/en/support/documents/xdj-xz/
Layout
